Brand:MEDTHO/OEM/ODM
Model No:J001
Transportation:Ocean,Land,Air,Express,Express
Packaging:PE BAG/cartons packing outside
Place of Origin:china
Productivity:1000 Piece/Pieces per Day

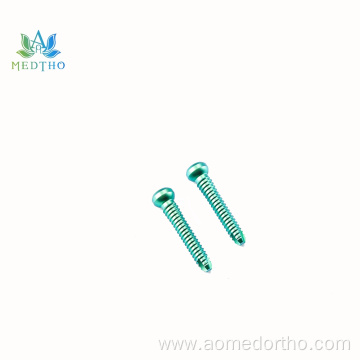

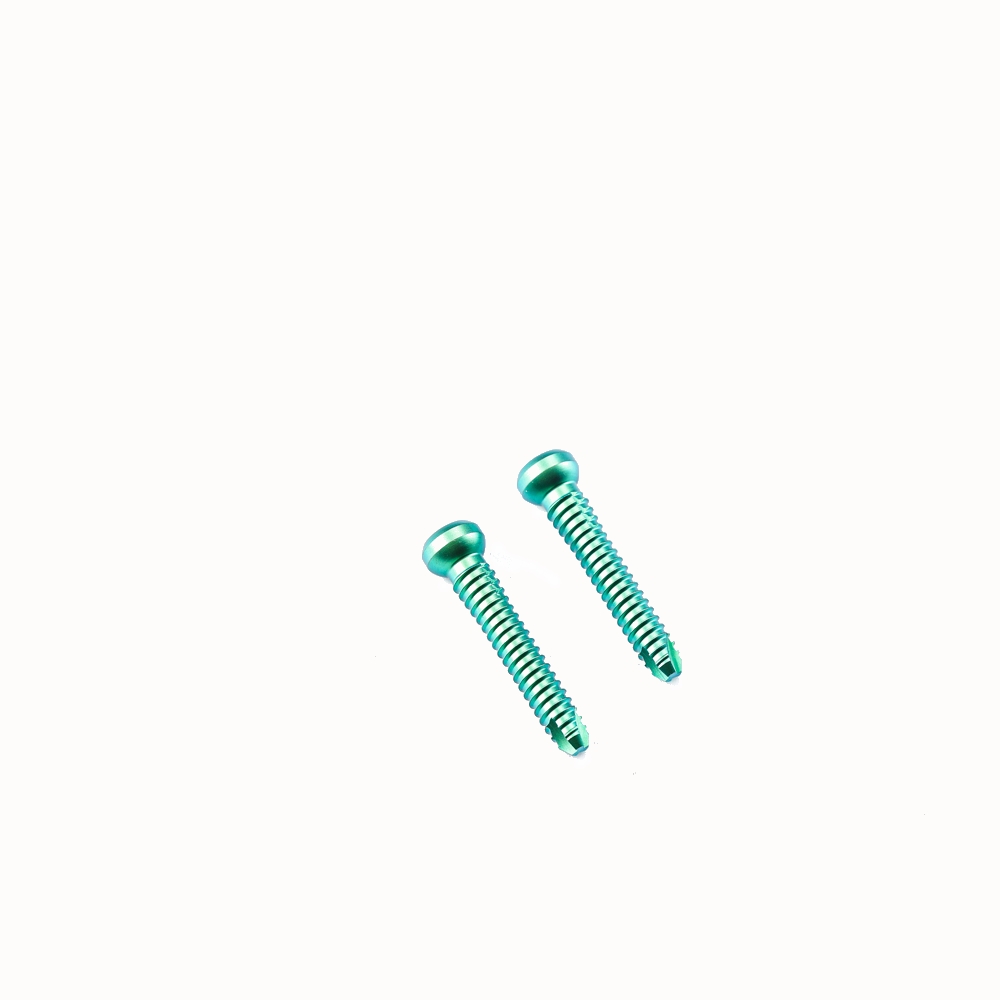

Locking screw is generally used in locking compression plate, which is a minimally invasive fixation system, matching the reverse thread corresponding to the plate hole, to achieve angular fixation, suitable for patients with osteoporosis. Compared...
Brand:MEDTHO/OEM/ODM
Model No:J002
Transportation:Ocean,Land,Air,Express,Express
Packaging:PE BAG/cartons packing outside
Place of Origin:china
Productivity:1000 Piece/Pieces per Day

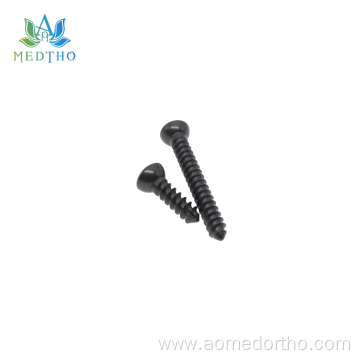

Self-tapping cortical screws are usually fully threaded with a smaller pitch and a larger contact area. Self-tapping cortical screws are generally used for diaphysis. According to the application site, orthopedic screws are usually divided into...
Brand:MEDTHO/OEM/ODM
Model No:J003,J004
Transportation:Ocean,Land,Air,Express,Express
Packaging:PE BAG/cartons packing outside
Place of Origin:china
Productivity:1000 Piece/Pieces per Day

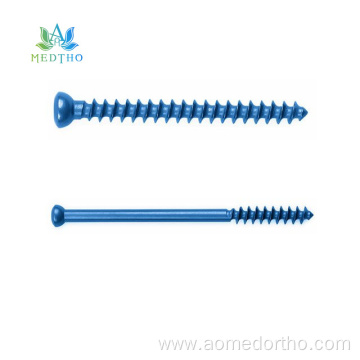

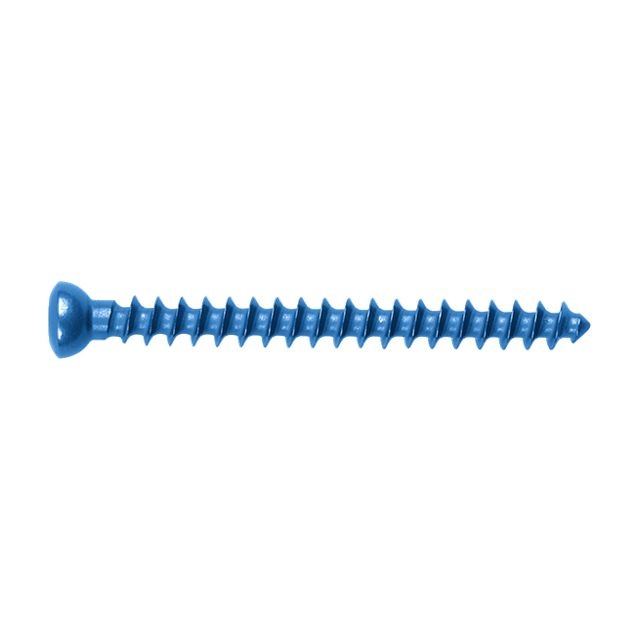

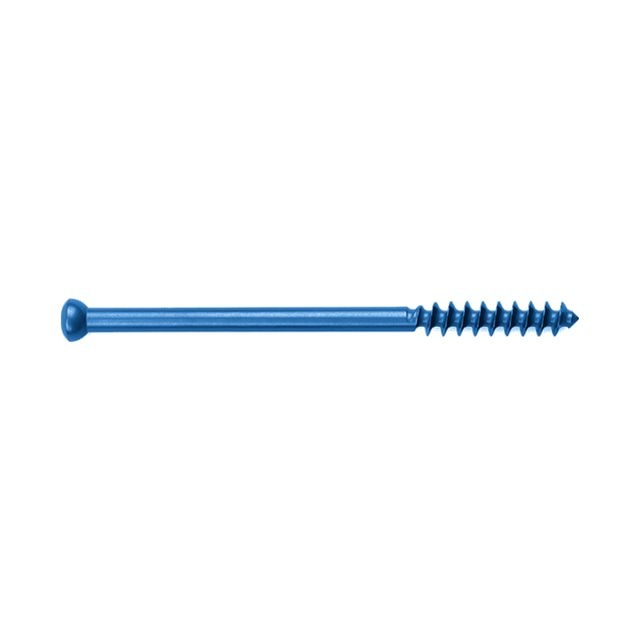

Cancellous screw is divided into two types,full thread and half thread, usually partial thread and generally self-tapping screw. Cancellous bone is at the bony end,and cannulated screws are generally used at the bony end.The bone density of...
Brand:MEDTHO/OEM/ODM
Model No:J001
Transportation:Ocean,Land,Air,Express,Express
Packaging:PE BAG/cartons packing outside
Place of Origin:china
Productivity:1000 Piece/Pieces per Day
Locking screw is generally used in locking plate,which is a minimally invasive fixation system,matching the reverse thread corresponding to the plate hole,to achieve angular fixation,suitable for patients with osteoporosis. Compared with the...
Brand:MEDTHO/OEM/ODM
Model No:J003,J004
Transportation:Ocean,Land,Air,Express,Express
Packaging:PE BAG/cartons packing outside
Place of Origin:china
Productivity:1000 Piece/Pieces per Day

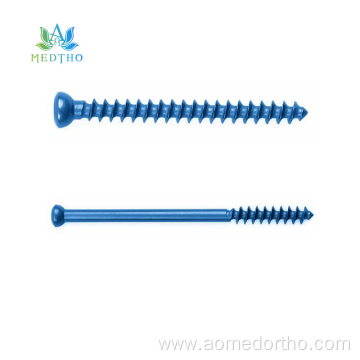

Cancellous screws are divided into two types,full thread and half thread, usually partial thread, and generally self-tapping cancellous screw. Cancellous bone is at the bony end,and cancellous screws are generally used at the bony end.The bone...
Brand:MEDTHO/OEM/ODM
Model No:J002
Transportation:Ocean,Land,Air,Express,Express
Packaging:PE BAG/cartons packing outside
Place of Origin:china
Productivity:1000 Piece/Pieces per Day
Self-tapping cortical screws are usually fully threaded with a smaller pitch and a larger contact area. Self-tapping cortical screws are generally used for diaphysis. According to the application site, orthopedic screws are usually divided into...
Bone screws, also known as fracture fixation screws, are commonly used in clinical practice to fix orthopedic implants.
Bone screws are usually used to fix internal fractures or dislocations by directly screing into two different bone blocks or fixing an internal implant such as a bone plate to achieve fracture fixation, position the bone and promote its healing. Bone screws are used in a wide range of areas, including the shoulder, elbow, hip, knee, spine, etc. For example, pedicle screw systems are used for spinal fusion, and compression bone screws are commonly used for foot and ankle surgery or fixation of other fractures under pressure. Similar to traditional mechanical screws, the main structures of bone screws also include nail cap, nail body, and nail tip. Screws can be used to fix bone plates or bone fragments. When used for the former, they are called plate screws, and when used for the latter (to prevent the collapse of bone fragments), they are called positional screws. The latter can be inserted into the plate holes, and can be placed on the bone alone (also known as compression screws). Compression screws can be used to increase interfragment pressure.
(1) The screw cap
The screw cap has three main functions: the first is to optimize the force. The protruding cap makes the contact area between the screw and bone larger, increases the load area, optimizes the local force at the screw insertion site, and reduces the risk of bone rupture caused by excessive stress. The second is the positioning effect. The prominent cap makes the bone nail can only be screwed into a certain depth to prevent the whole bone nail from being screwed into the bone completely. The third function is to provide the position of force application by rotating the force groove at the cap to move the bone nail forward and drive it into the bone. Now, the force groove is mostly inner hexagonal, which does not require axial force to maintain the actuator in the center position and is suitable for a wider range of fractures.
(2) Screw the body
The size of the nail body determines the strength and fatigue resistance of the bone nail. The larger the diameter of the nail body, the stronger the strength will be, and the corresponding fatigue resistance will be better. In addition to the diameter of the nail body, the pitch and tooth depth of the screw body thread are also the key parameters of the nail body design. Different thread design has an important effect on the pressure and occlusal performance of the screw.
(3) Screw tip
Tapping is the process of phalangeal nail cutting thread in the bone. According to the shape of the nail tip, the bone nail can be divided into self-tapping nail and non-self-tapping nail. The nail tip of the self-tapping nail is sharper and can be directly screwed into the bone without pre-drilling. Usually, self-tapping screws are used for Cancellous bone, and the bone is compressed when the screw is inserted, so as to increase the bone density of the occlusal part locally and enhance the occlusal effect. However, when inserting screws in Cortical bone, the screw channel is generally pre-punched, and then the Bone Screw is screwed. Usually, the self-tapping screw is not directly used to prevent the bone screw from being stuck or damaged because the cortical bone is too hard.
