Product Attributes
Model No.: L121-L124,L129,L130
Brand: MEDTHO/OEM/ODM
Functional Use: Implant Materials &Amp; Artificial Organs
Place Of Origin: China
Medical Device Classification: Class Iii
Warranty Service: 5 Years
After-sales Service: Online Technical Support
Remarks:: Customized service is available
Supply Ability & Additional Information
Packaging: PE BAG/cartons packing outside
Productivity: 1000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: china
Certificate: CE ISO
HS Code: 902110009
Port: Shanghai
Payment Type: T/T,Paypal
Incoterm: FOB
Product Description
Large fragment External Fixation system is mainly used for tibial and femoral fractures.
Features and Advantages
1. The main part is composed of hard aluminum and carbon fiber with excellent performance. It has the advantages of stable fixation, flexible configuration and light weight. According to the treatment of fractures, the fixation function is the main. Used for orthosis, it has not only fixation function, but also stretching and compression function; It is used for limb traction and extension, mainly for traction function.
2. The application of spring load preocclusion mechanism (snap-fit) in the design is simple to operate and can effectively shorten the operation time during the operation.
3. A variety of combinations allow surgeons to make the best choice according to the actual situation of patients.
4. The overall design has the best stability and elasticity.
Parts
Proximal Tibia External Fixator Reference NO. L121
The proximal ex fix tibia system is mainly used at the proximal tibia. There are 4pcs φ8/8 rod to rod couplings, 3pcs φ8/5-6 pin to rod couplings, 1pc φ8/5-6 5-hole pin clamp, 2pcs φ8/30° posts, 1pc φ8 semi-circular curved rod with 180 opening degrees, 2pcs φ8*250mm connecting rods and 5pcs φ5*150mm self-tapping and self-drilling bone screws.

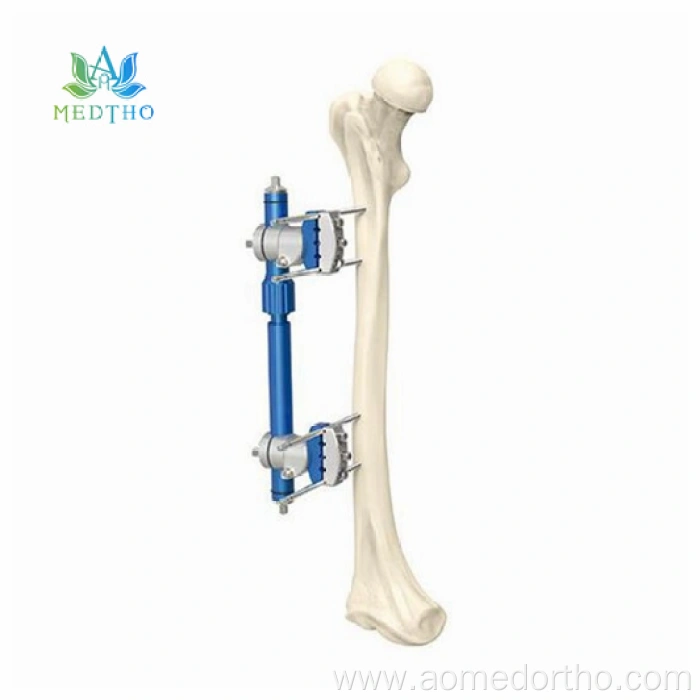

Femoral Shaft External Fixator Reference NO. L122
The femoral shaft orthopedic external fixation is mainly used for the fixation of femoral shaft fractures, including 2pcs φ8/8 rod to rod couplings, 4pcs φ8/5-6 pin to rod couplings, a φ8*200mm connecting rod, 2pcs φ8*250mm connecting rods and 4pcs φ5*150mm self-tapping and self-drilling bone screws.The tibia & percone external fixator (standard type) is suitable for the fixation of tibial and fibular fractures. It contains two φ8/8 rod to rod couplings, two φ8/5-6 5-hole pin clamps, four φ8/30° posts, two φ8*300mm connecting rods, two φ8*250mm connecting rod, and four φ5*150mm self-tapping and self-drilling screws.

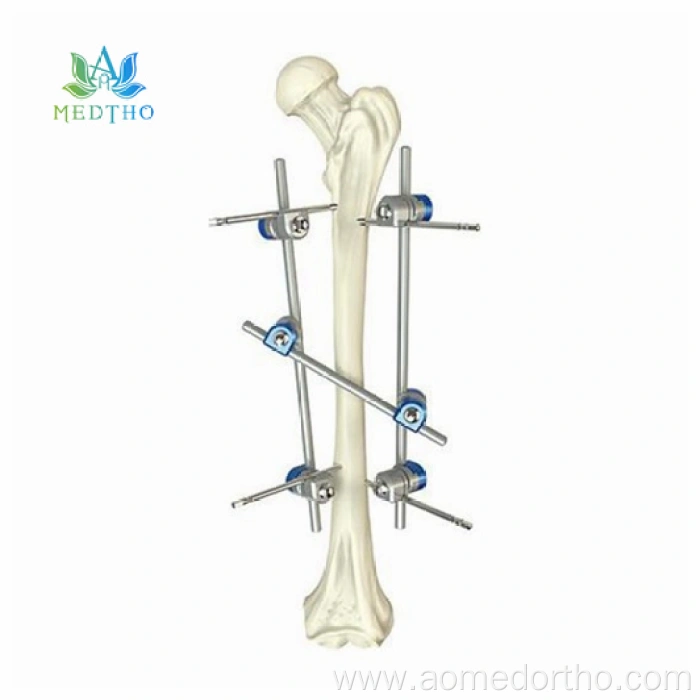

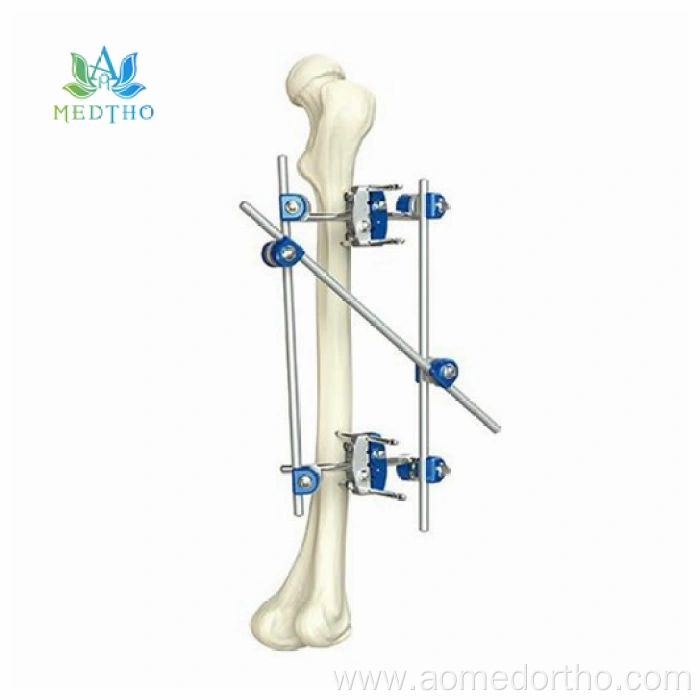

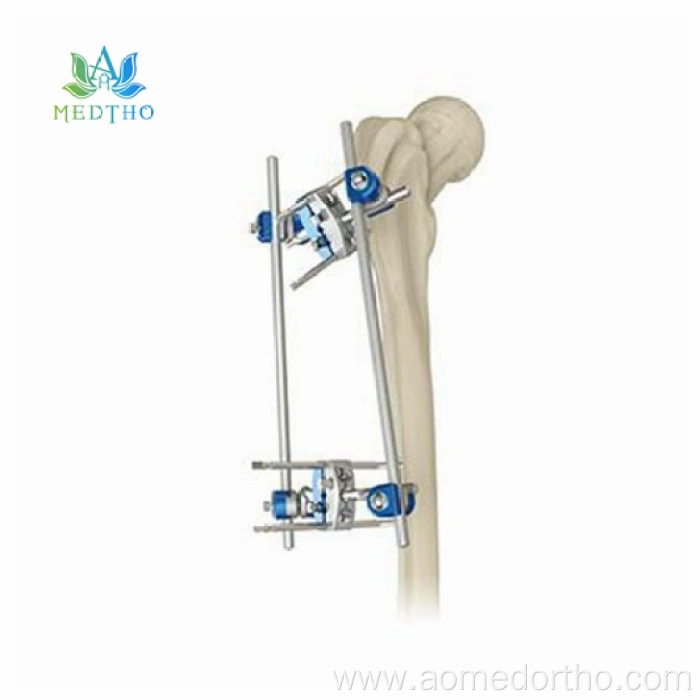

Proximal Femur External Fixator Reference NO. L124
The proximal femoral external fixator is mainly used in femoral intertrochanteric fractures and contains 4pcs φ8/8 rod to rod couplings, 2pcs φ8/5-6 5-hole pin clamps, 4pcs φ8/30° posts, 2pcs φ8*300mm connecting rods, 2pcs φ5*150mm self-tapping and self-drilling bone screws, and 2pcs φ5*180mm self-tapping and self-drilling bone screws.There are 2 types of micro-motion compression type, which are mainly used for external fixation of femoral shaft fractures. They are mainly composed of two φ20/8 tube to rod couplings, one φ20 compression/distraction tube, two φ8/5-6 5-hole pin clamps, two φ8/30° posts and four φ5*150mm self-tapping self-drilling bone screws.
It can be seen that these external fixators in orthopaedics are the best choice for your patients to fix tibial and femoral fractures. If you have this need, please feel free to contact us. For more details, you can also download our product catalogue by filling in the email.
Packaging & Delivery
Selling Units: | Piece/Pieces |
---|---|
Package Type: | PE BAG/cartons packing outside |
