Product Attributes
Model No.: L012-L015,L018
Brand: MEDTHO/OEM/ODM
Functional Use: Implant Materials &Amp; Artificial Organs
Place Of Origin: China
Medical Device Classification: Class Iii
Warranty Service: 5 Years
After-sales Service: Online Technical Support
Remarks:: Customized service is available
Supply Ability & Additional Information
Packaging: PE BAG/cartons packing outside
Productivity: 1000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: china
Certificate: CE ISO
HS Code: 902110009
Port: Shanghai
Payment Type: T/T,Paypal
Incoterm: FOB
Product Description
There are five kinds of ring orthopedic External Fixation mainly used for tibial and femoral fractures.
Ring fixator for tibial & femur fracture
2/3 ring fixator for tibial & femur fracture
Bone lengthening ring fixator for tibial & femur fracture and bone lengthening
Ring fixator for tibial & femur fracture
Ring fixator for tibial & femur fracture
For example, patients with proximal tibial fractures who cannot walk and have severe soft tissue injuries can be treated with external fixation using a ring frame. The ring External Fixator has the advantages of short operation time, simple operation and minimally invasive operation. It does not affect the blood supply of the fracture end and does not require secondary surgery. The dynamic design of the controlled external fixator can be used to micromove and promote fracture healing. The orthopedic Bone Screw is designed with conical thread, the tighter the screw is, the fixation is reliable, and it is suitable for the correction of various deformities.
Parts

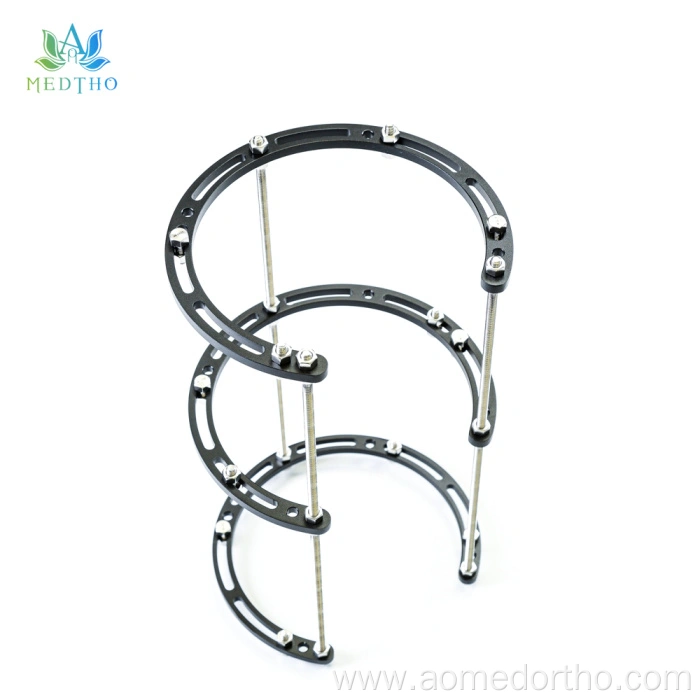

The configurations of NO.L012 are 6pcs half rings, 3pcs M6*300 threaded rods, 6pcs M6*20 screws, 6pcs M6*20 nuts and 12 pin clamps.
The fittings of NO.L013 are 3pcs rings with 6 groove, 3pcs M6*300 threaded rods and 12 pin clamps.

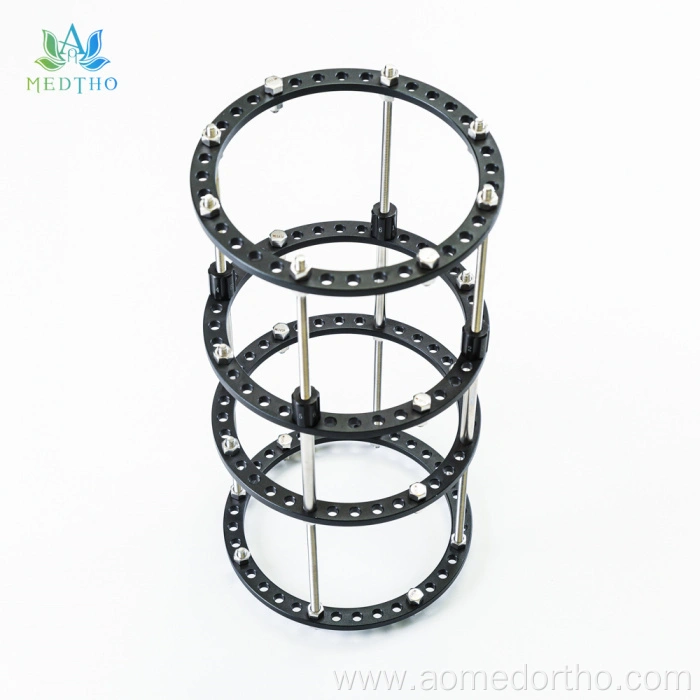

The accessories of NO.L014 are 4pcs rings, 4pcs inner threaded connecting rod, 4pcs M6*150 threaded rods, 6pcs M6*120 threaded rods and 16 pin clamps.

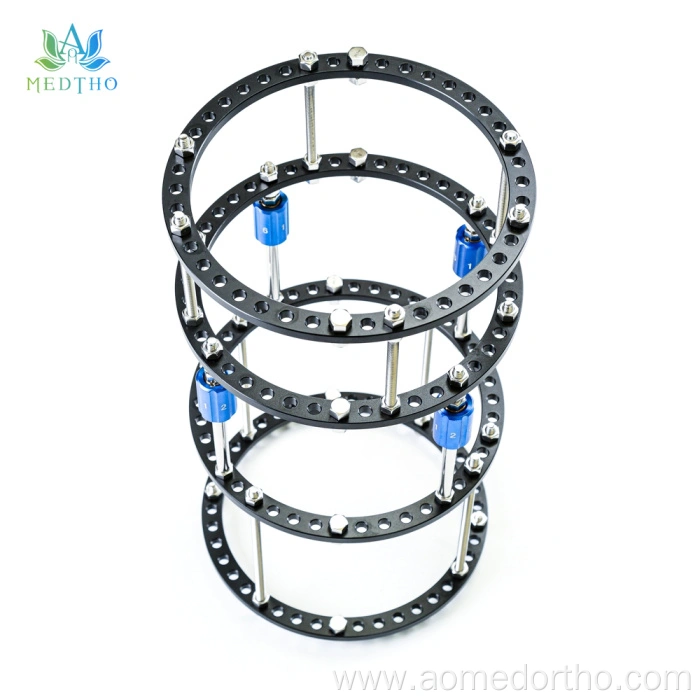

The accessories of NO.L015 are 4pcs rings, 4pcs M6*350 threaded rods, 4pcs adjusting nuts, 16 pin clamps and 4pcs annular sleeves.
Ring Fixator For Tibial & Femur Fracture
Reference NO. L018

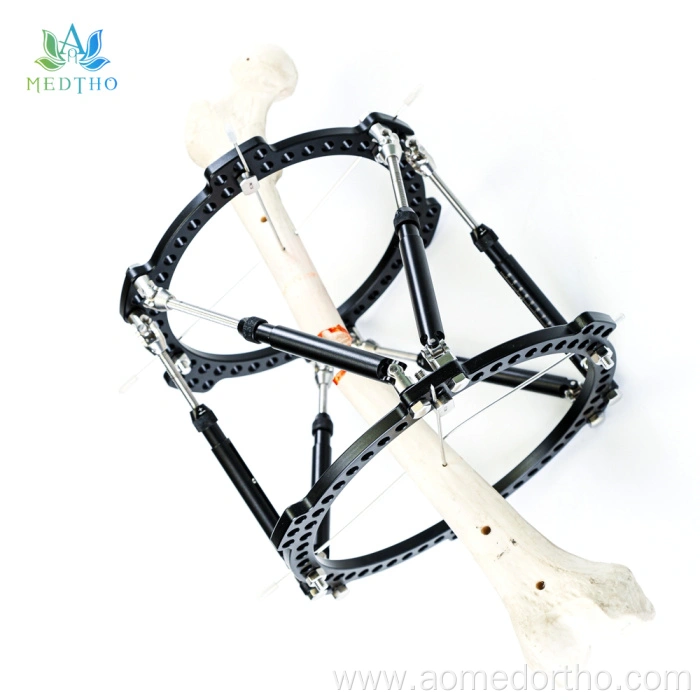

The accessories of NO.L018 are 1pc rings with 3 ear,1pc rings with 6 ears and 6pcs standard rod.
Surgical orthopedic surgery
1.The patient was placed in the supine position, using a radiolucent or fracture table.
2.Approach/exposure: A small incision is usually used to reduce the articular surface.The incision should be selected according to the fracture, usually including:anterolateral or anteromedial incision,Medial or posteromedial incision.
3.The annular external fixator should be preinstalled according to the preoperative image.In general,2pcs proximal and distal rings are included.
4.Reduction of the articular surface through one or more approaches.The meniscus was observed for tear and retracted to expose the articular surface.The aim is to obtain as stable internal fixation of articular fractures as possible.
5.The intra-articular hematoma and unfixable fracture debris were cleaned,and the fracture fragments were temporarily fixed with reduction forceps or Kirschner wire after reduction.The fracture reduction was observed under direct vision and fluoroscopy, and then the smaller fracture fragments were fixed with screws and fine needles with threads.
6.The fixation material is parallel to and as close as possible to the articular surface,and does not penetrate the articular surface, leaving enough space for the circular external fixator.The injured meniscus was removed or repaired,depending on the location.The meniscus was sutured to the medial and lateral collateral ligaments using nonabsorbable sutures.
7.The incision was closed first, and then the annular external fixator was applied.The proximal fracture was fixed with an external fixation ring.The distal external fixation ring was fixed to the femoral shaft. Install the external fixator.
8.The fracture can be further fixed with Kirschner wires or steel pins.The steel Bickner wire is usually easier to drive into the fracture from different directions and fix it.The pinhole should be padded with sufficient thickness of accessories to prevent soft tissue from moving relative to Kirschner wire or steel needle.The ankle was fixed in the plantarflexion position with a splint in the operating room.
9.Bone defects can be managed in a variety of ways:Use of allogenic or autogenous bone grafts during open reduction and internal fixation.Artificial bone can also be injected locally.
Packaging & Delivery
| Selling Units: | Piece/Pieces |
|---|---|
| Package Type: | PE BAG/cartons packing outside |
